W I N T E R 2 0 2 3
S P E C I A L !
B u y a n d s t o c k u p n o w , w h i l e y o u r m o n e y ' s
s t i l l w o r t h s o m e t h i n g ! !
$50 Off
Save $50 per each kit when you buy either our #20RA or our #30RA Dial-Based Shaft Alignment Kit! Plus, they still include our #AMTI-84 Alignment Manager Calculator at no additional cost! No more doing the calculations manually on a calculator! You simply and easily enter your measurements and dial gauge readings as the program prompts you, and it figures the shim corrections in the vertical plane, and movements towards or away from you in the horizontal plane. Simply. Easily. Like it should be.
STOCK UP NOW AND SAVE!
Our Alignment Manager™ Calculator is included free with each dial-based kit purchase!
(Discount applies to website orders only.)
_200727%20(size.jpg)
_.jpg)

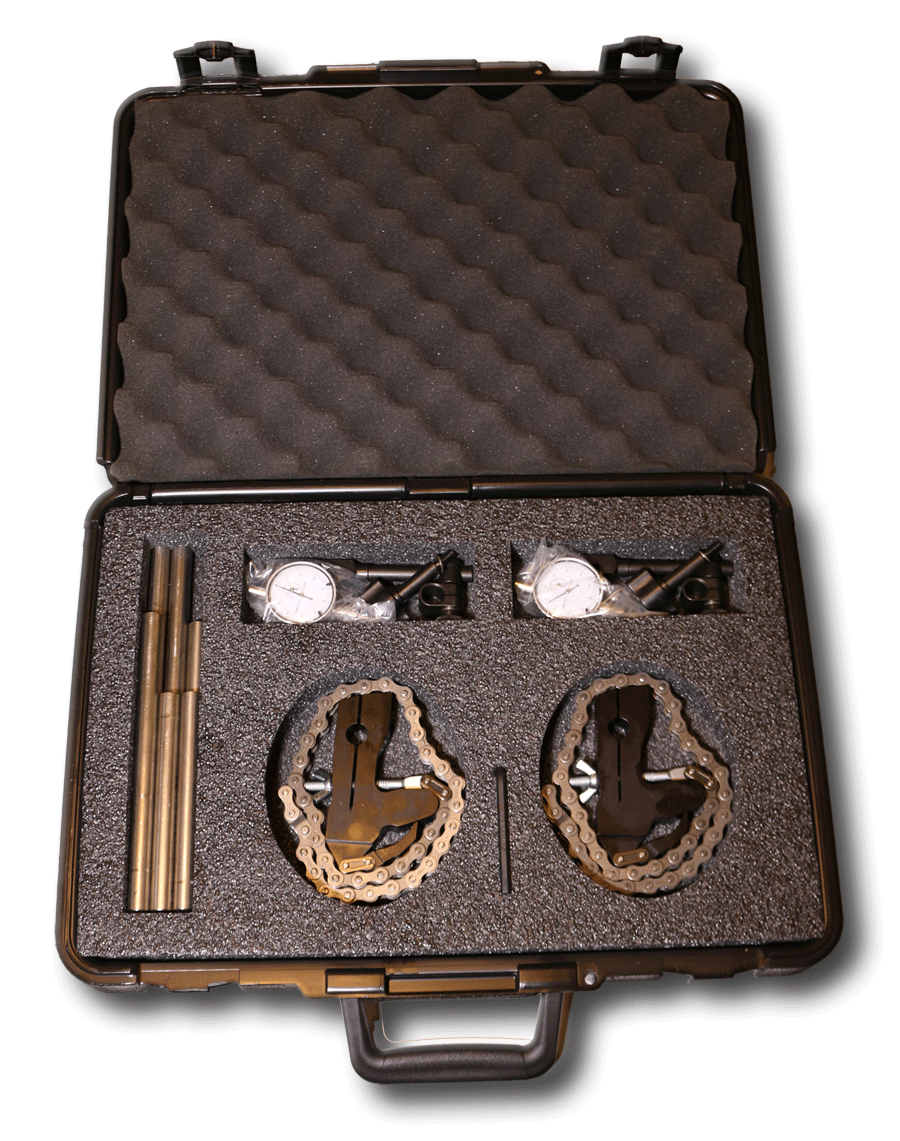

#20RA SHAFT ALIGNMENT KIT
Our model #20RA SHAFT ALIGNMENT SYSTEM was developed for smaller motor-pump equipment where space may be at a premium.
This compact design comes with every component necessary to align machinery having shaft sizes from 3/4" to 3-1/2" in diameter. Short-length frames come with a single hole that accepts the tubing that will harbor the dial indicator assembly, making them ideal for motor-pump installations with cramped quarters where space is at a premium.
The included alignment frames (5/8" thick) are precision-milled from rigid and durable 6061-T6 aircraft-grade aluminum, ensuring flat and square surface contact between the frame and the shaft so your dial indicator readings are precise.
Kit Contents:
-
(2) alignment frames, each with one (1) x 1/2" diameter mounting hole for mounting tubes
-
20" of #41 roller chain attached to each frame
-
(2) Dial Indicators, each with (1) swivel joint and (1) mounting rod assembly
-
Dial Face: 0-50-0 | Travel Per Rev.: 0.100" | Total Range: 0.250" | Dial Case Dimensions: 1-11/16"
-
1/2" diameter SS tubing: (2) x 5", (2) x 7" and (2) x 9" lengths
-
Allen key, 3/16"
-
#AMTI-84P Alignment Manager™ Calculator FREE!
-
Instruction manual
-
Foam-lined, durable carrying case with handle
Minimum Swing Radius: 3-1/2"
The minimum distance from the mounted surface to the base plate of the equipment. Allows for full rotation of the shaft and coupling assembly with the alignment tool mounted.
Shaft Accommodation: 3/4" to 3-1/2"
The diameter of shaft, from smallest to largest, that this kit can be accurately used on.
Frame Width: 5/8"
The thickness of the alignment frame(s) the kit contains.
Radial Clearance: 2.10"
The maximum distance from the mounted surface to the underside of the 1/2" diameter tubing used to span the coupling. This measurement can be defined as the radius of the coupling minus the radius of the shaft size.
Click to Download PDF Instruction Manual
.jpg)
_200727%20(size.jpg)
_.jpg)
Click to Download PDF Instruction Manual
#30RA SHAFT ALIGNMENT KIT
Our model #30RA SHAFT ALIGNMENT SYSTEM was developed for larger motor & pump equipment installations where longer spans across the coupling may be required.
This more robust design comes with every component necessary to align machinery having shaft sizes from 3/4" to 5-3/4" in diameter, and allows for a wider array of configurations thanks to the triple-hole frame design. Giving each of the dial indicator assemblies their own mounting tube decreases the indicator "SAG," which is the deflection of the dial indicator due to gravity alone.
These alignment frames (3/4" thick) are also precision-milled from rigid and durable 6061-T6 aircraft-grade aluminum, ensuring flat and perpendicular surface contact between the frame and the shaft so your dial indicator readings are as accurate as possible.
Kit Contents:
-
(2) alignment frames, each with three (3) x 1/2"-diameter mounting holes for mounting tubes
-
18" of #40 roller chain attached to each frame
-
(2) Dial Indicators, each with (1) swivel joint and (1) mounting rod assembly
-
Dial Face: 0-50-0 | Per Revolution: 0.100" | Total Range: 0.250" | Dial Case Dimensions: 1-11/16"
-
1/2" diameter SS tubing: (2) x 5", (1) x 7", (1) x 9", (1) x 12" and (2) x 15" lengths
-
#555 General inspection mirror
-
Allen key, 3/16"
-
#AMTI-84P Alignment Manager™ Calculator FREE!
-
Instruction manual
-
Foam-lined, durable carrying case with handle
Minimum Swing Radius: 5-3/4"
The minimum distance from the mounted surface to the base plate of the equipment. Allows for full rotation of the shaft and coupling assembly with the alignment tool mounted.
Shaft Accommodation: 3/4" to 5-3/4"
The diameter of shaft, from smallest to largest, that this kit can be accurately used on.
Frame Width: 3/4"
The thickness of the alignment frame(s) the kit contains.
Radial Clearances: 2.10", 3.5" and 4.9"
The maximum distance from the mounted surface to the underside of the 1/2" diameter tubing used to span the coupling (3 possible with the #30RA). This measurement can be defined as the radius of the coupling minus the radius of the shaft size.
